Going Green's Modular Panel system

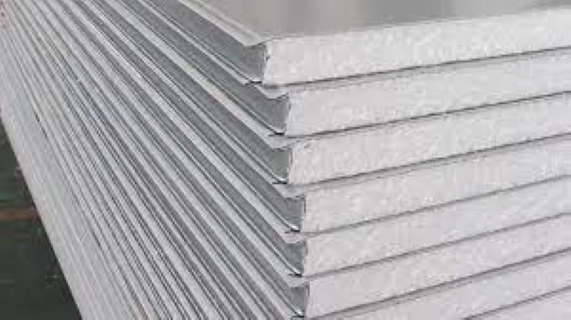

Lightweight EPS sandwich panels consists of an Expanded Polystyrene (EPS) inner core, fully bonded with galvanized steel sheeting and coated with Chromadek exterior coating.

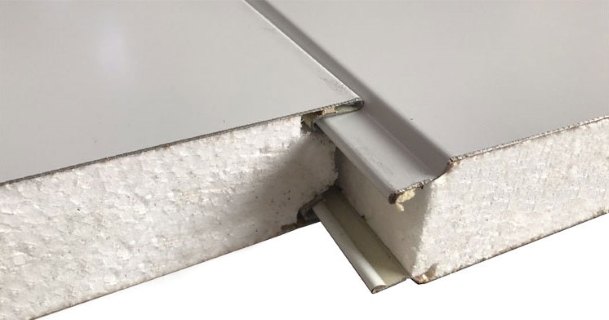

Tongue-and-groove interlocking panels are used together with a galvanized steel frame to ensure excellent load and span capabilities.

• Standard panel width of 1150mm and thickness of 75mm
• Each panel is heat insulated which saves energy on heating and cooling
• The modular system is economical and presents significant savings in onsite installation costs
• Structures could be disassembled and moved, if necessary
• A long-lasting, hard-wearing product
• Low maintenance



Construction

• Going Green Modular units are built on either a steel base or a concrete slab
• Units are delivered in a set consisting of all materials and consumables needed for the assembly
• A prefabricated galvanized steel frame is fastened and erected onto the base

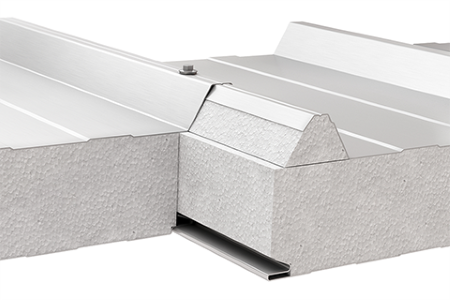

• Tongue-and-groove wall panels are slotted into each other and secured onto the steel frame
• Tongue-and-groove roof panels are slotted into each other and secured onto the structure
